PRODUCTS

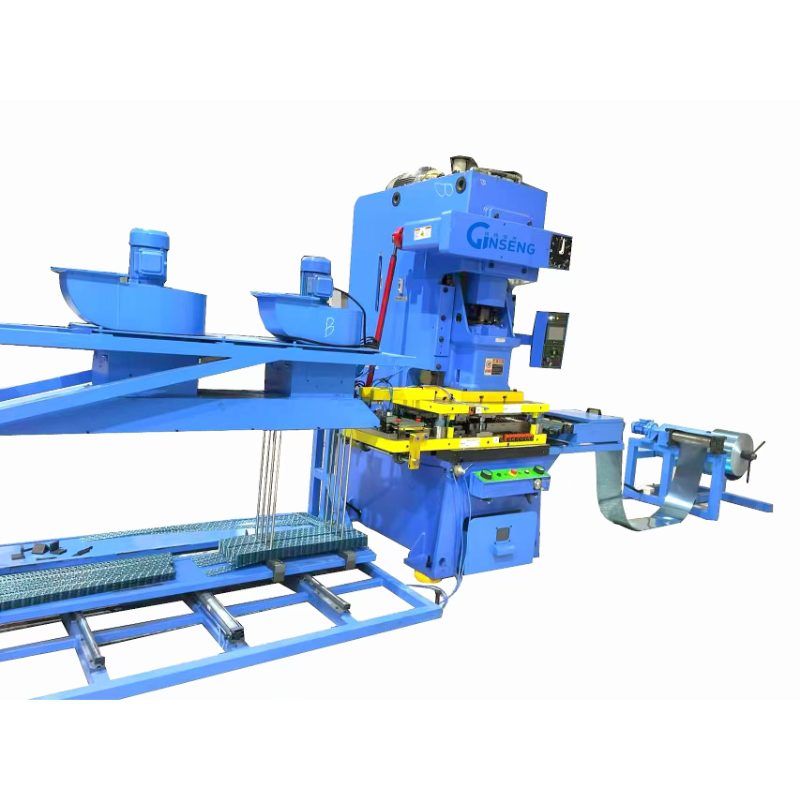

C type fin press line

This machine is to punch the aluminum fin or copper fin with high speed in production of fan coil unit, chiller, AC etc. Including decoiler, oil tank, high speed press, stacker and sucker etc.

Description

Products Description：

1.TKM21 series C-type fins press line for the punching of air conditioner fins is specially intended for meeting the requirements for the produxtion of air conditioner fins. The line mainly consists of uncoiler, oil tank, fin press, suction unit, stacker and relevant electrical control systerm.

2. Imported PLC, counter and contact point free cam controller are adopted to meet the requirements of counting the fins cut collected as well as the function of progress change.

3. Production line of special specifications can be made subject to the user’s requirements.
